The Pixel Monitoring feature of this Application allows you to Monitor Color Changes in a Rectangular Screen Area and take appropriate configured actions.
With Pixel Detection feature of the Application Monitor Software by MurGee.com, you can control the speed on which Pixel Colors are read and interpreted by the software. You can Detect specific Pixel Color(s) in Screen Area oe even Monitor Count of Unique Pixel Color(s) to be detected as a Change and then can simulate Mouse Click on run a Macro Script.

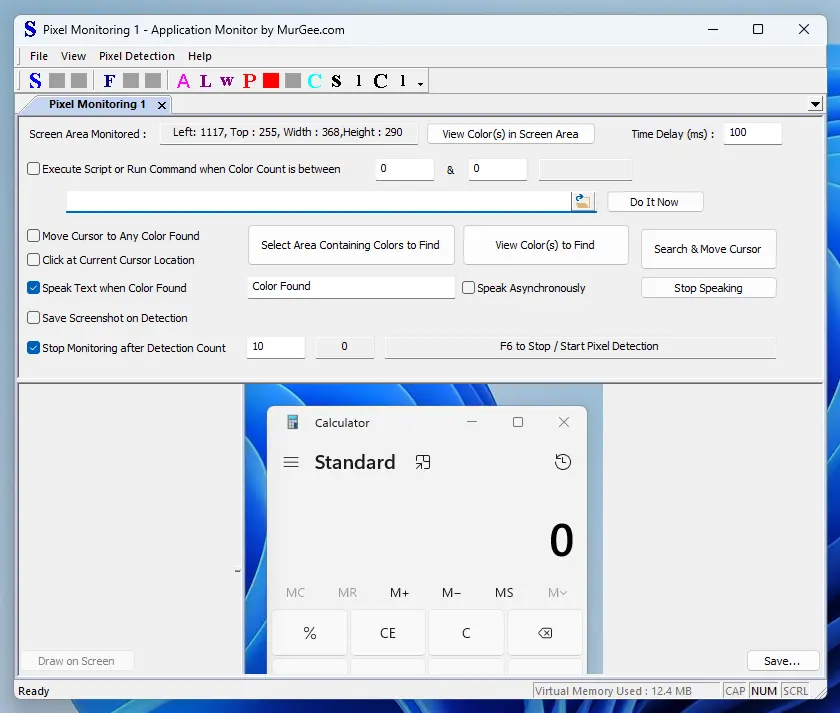

Pixel Monitoring Screen of Application Monitor Software
A System Wide Keyboard Shotrcut is automatically configured for you to Stop or Start Pixel Color Dtection. Voice Alerts and Changes in the Controls of the Software do reflect as to when Pixel Color Detection is in Progress or has Stopped. The LIVE Screen Area Display update is also stopped when Pixel Detection is Stopped.
You can configure Speed of Pixel Color Detection by controlling Time Delay in Milli Second(s). The Lower the value of Time Delay, the Faster it Performs. by Default, the Time Delay is configured as 100 Milli Seconds and is available at the top right corner of the Pixel Detection Screen.
A System ide or Global Keyboard Shortcut is Configured Automatically (first available from F6 to F12) to Stop or Start Pixel Detection.
You can view the LIVE Update of Screen Area Selected as viewed by the Software at the bottom of the Screen.
Count of Unique Pixel Colors is automatically Updated and displayed.
You can Execute a Macro Script when Unique Pixel Colors detected is within the range configured.
When Configured Color(s) are Displayed in the Monitored Rectangular Screen Area, you can Automate a Mouse Click on the Matched Pixel Color.
You can view Unique Color(s) from the Monitored Screen Area using the View Color(s) button near to the Time Delay Edit Box available.
You can View Unique Color(s) which you want to be detected from the Monitored Screen Area using the View Color(s) button to the right of button labelled Select Area Containing Colors to Detect.
How to Create a Pixel Color Clicker
To Create a Pixel Color Clicker, you can use Pixel Detection feature and it's features as outlined above.
You can follow given below steps to create a simple and easy Auto Pixel Clicker to Auto Click a Color from a Screen Area.
Launch Pixel Detection Screen from the Main Application Window of the Software. You can Launch Pixel Detection Screen from File Menu or by doing a Right Click on the Main Screen of the Software.
Select a Screen Area which you wish to Monitor by dragging Mouse Cursor around the Screen Area to be Monitored.
Now you need to Select the Pixel Color(s) which you want to be detected. Now Click on Select Area Containing Colors to Detect and Drag the Screen Area in which the color(s) or to be detected image is present.
Now Click on View Colors button to the right of the button used to select the Screen Area Containing Colors to Detect and Ensure that Correct Colors(s) are listed. In case some Extra Color(s) are listed, you can Select them and Remove them from the Color(s) to be Detected.
Do Visually Ensure that the Correct Screen Area is being Monitored and Correct Color(s) to be detecetd are Listed. To Change Speed of Colors Detected, you can reduce or increase the Time Delay available at the top right corner of the Pixel Detection Screen. Lower the Time Delay value, faster the detection will be performed.
Note the Keyboard Shortcut Automatically Configured to Stop / Start Pixel Color Detection. Press the Keyboard Shortcut to Stop the Color Detection and press the Keyboard Shortcut again to Start the Pixel Color Detection.
Stop the Pixel Detection using Keyboard Shortcut and Check the Checkbox which reads Click on Any Color Found. Optionally also Check the Chekbox which reads Stop After 1st Detection so that the Pixel Color Clicker created in the steps above stops Automatically.
When running First Time, Ensure that you are running in a Test Environment only.
Press the Keyboard Shortcut to Start the Pixel Color Clicker made in the steps above.
Although above steps may sound too many, but to ensure that you do understand the functionality and can control the software, do ensure that you do read and understand the functionality before actually using it. To understand about Pixel Colors, you can use the View Pixel Colors feature of this Application Monitor Software by MurGee.com.
